Wire rope – Re-Lubrication Device

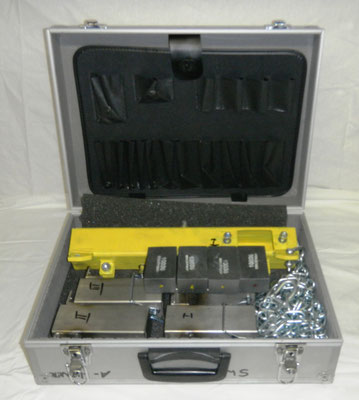

Suitcase contains:

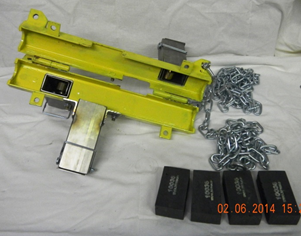

1 x basic unit

2 x guide jaw – rope diameter

4 x brackets for blocs

2 x safety chain 2.0m

4 x shackles

4 x dry lubrication blocs

1x manual



1 x checklist – rope data

Mounting instruments:



open-end and socket wrench SW 13mm

open-end and socket wrench SW 17mm, Allen wrench

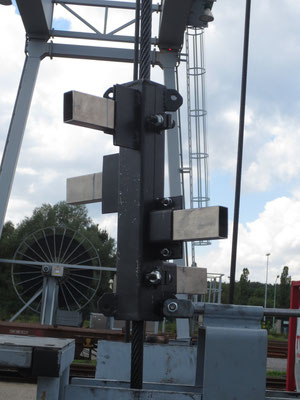

Mounting device on rope:

  • Opening both halfs.
  • Installing respective guide jaws.
  • Mounting device on appropriate point oft he rope.

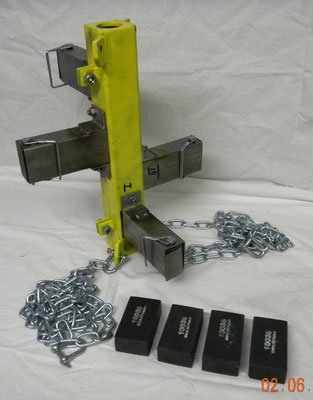

  • Mounting of 4 lubrication bloc brackets.
  • Closing and clamping, installing saftey chain and shackles.

  The safety rope is 2.0 meters long..



Installing of lubrication blocs in brackets:

  • Loosing clamping device
  • pulling-out clamping device
  • installing lubrication blocs
  • installing brackets (see marking).

Lubrication process:

  • The rope is going through the lubrication device and is supplied with lubricant on 4 sides through the lubrication blocs.
  • The lubrication blocs shall be renewed before they are done completely. This ensures continuous lubrication.
  • The lubrication layer is perfect, as soon as the surface of the rope turns grey.
