Applications on indoor crane




Indoor cranes usually consist of chassis rails and crane trolleys

Long distances are made on the chassis rail, load manipulations with the trolley. The trolley drive is generally made for faster trips than the chassis rail.

Chassis and trolley are equipped with flanged wheels and supporting rollers. They are driven by electric motors, the wheels are exposed to large loads due to friction wear on the wheel-rail contact point.

Problem for tread:

High wheel and rail wear on treads or rail head, loss of friction through hardening, flaking off of rail, air deposits, condensations- danger of slipping -> uncertain breaking distance, starting slip, slip-stick effects.

High costs and long waiting periods for rail repair (welding, grinding, exchanging) and wheel exchange.



Solution for treads of chassis rails and trolleys:

Equipment with adhesive blocs 10035 in mountings H015 with consumption display.

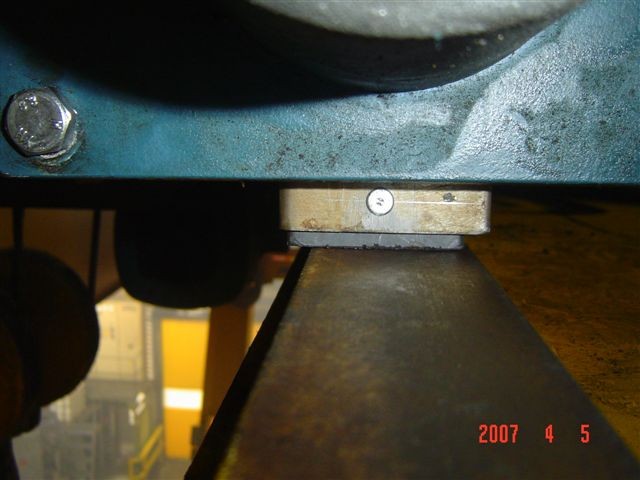

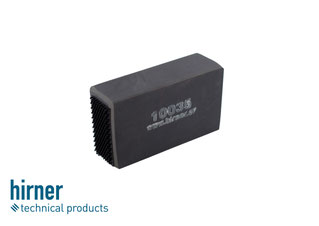

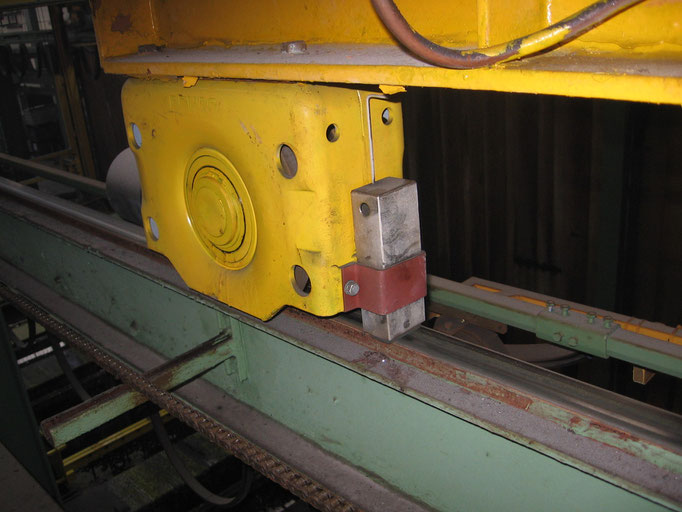

The adhesive blocs 10035 are mounted to the rail and also protect the rail (removal device). They coat the rail and tread maintenance-free with a dry lubricant.



The coating enhances a constant friction between wheel and rail of about 0.3-0.5. At the same time wheels and rails are protected from wear. Side effects of the wear protective adhesive blocs 10035 are increased smoothness and freedom from maintenance.

Problem for flange:

Due to uneven loads the wheels tend to climb the rail flank. Here, the flanges are extremely stressed by friction wear. This results in grading and rolling of rail flanks and abrasion on flanges. The consequences are high repair costs and uneven crane movement.



Solution for flanges:

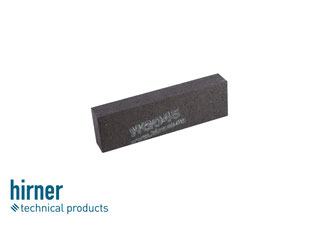

Equipment with lubricating blocs HG045 or in cases of high wear with lubricating blocs 10036.

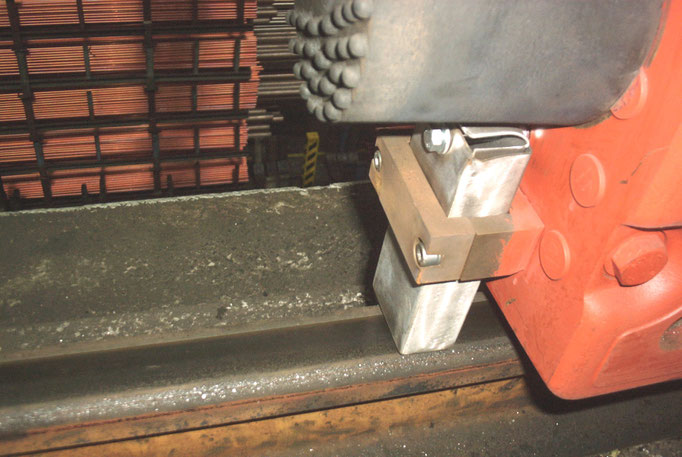

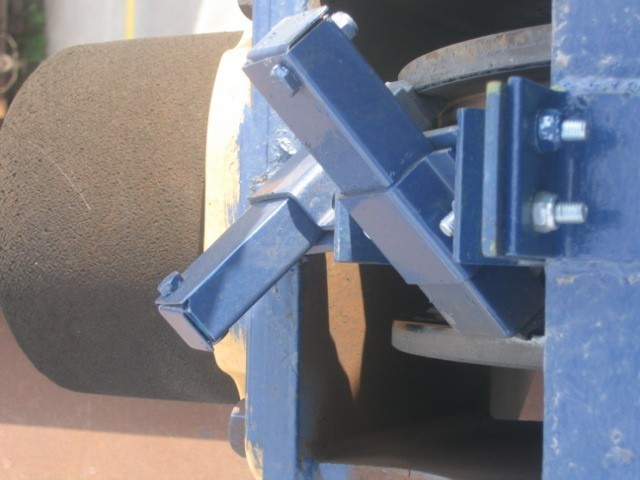

The blocs are directly mounted on flanges (2pieces per wheel) and coat maintenance free with dry lubricant.

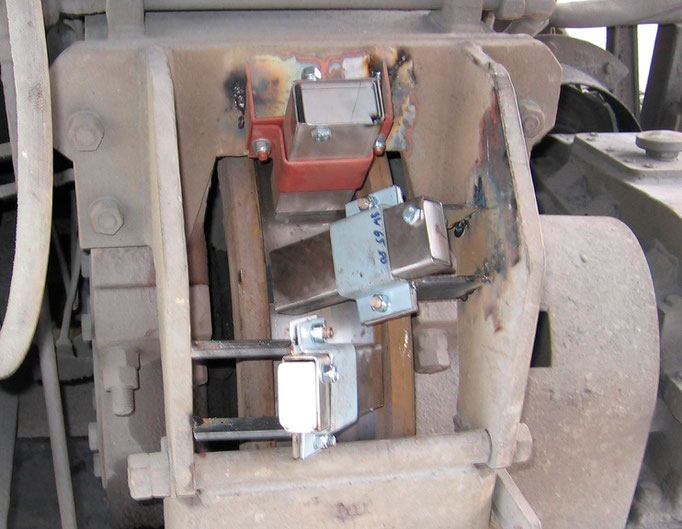

The substances are rolled into the surfaces, therefore adhesive blocs for friction preservation – lubricating blocs for wear protection can be mounted side by side:

Since most of time welded rails are used, lubricating blocs can also be mounted on the rails.





Advantage: Need for less lubricating blocs!

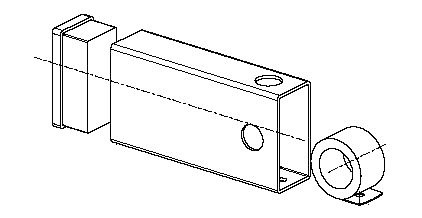

Edge Lubrication: blocs HG045011 20x45x120, mounting H011, clamp K010/11
Edge Lubrication: blocs HG045011 20x45x120, mounting H011, clamp K010/11

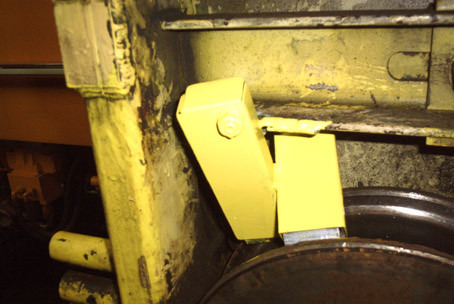

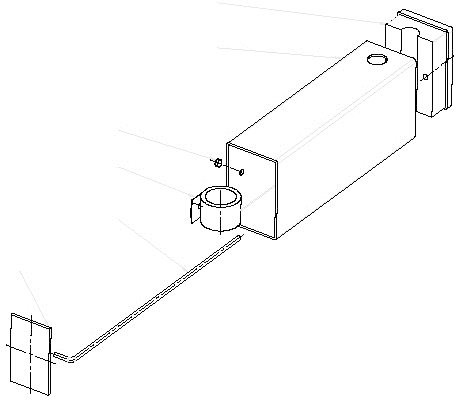

Friction Preservation: blocs 10035/31x55x100, mounting H015TRKT (opt. indicator), clamp K015
Friction Preservation: blocs 10035/31x55x100, mounting H015TRKT (opt. indicator), clamp K015
